Amana Tool Raised Panel With Back Cutter Carbide-Tipped 2-Flute w/Ball Bearing GuideThank you for shopping with us! Raised panels fit standard panel grooves, even when the panel thickness exceeds 5/8″. As the main cutter raises the front of the panel, the back cutter mills the back to produce a standard-thickness tongue around the panel. Each tool is supplied with two different guide bearings, enabling you to stage cuts on curved edges effectively and safely. All tools have 1/2″ shanks. Must be used in a table-mounted 3+ horsepower router and run at reduced speed. Multiple passes recommended. Replacement bearing #47713 (8mm x 16mm) and #47763 (8mm x 1 1/4″) Warning: Maximum RPM = 12,000 Profile Sample #54221
|

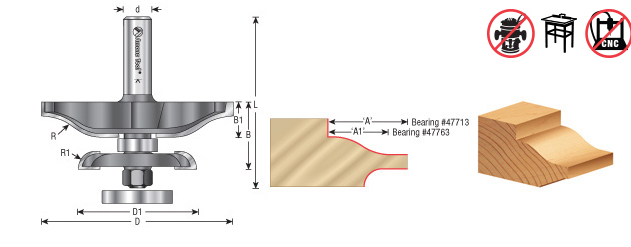

Note: Reveal (‘A’) reflects the total length of cut. Therefore, you must deduct 3/8″ (usually) for allowing the panel to recess into the frame. Note: To receive (‘A1’) use bearing #47763.
Download as PDF| Item # | Images | Manufacturer | Diameter | Cut Height, Length, or Width | Bearing(s) | Diameter (D1) | Flute | Note | Overall Length | Radius | Reveal | Shank | Type | Angle | RPM | Price | Add To Cart | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

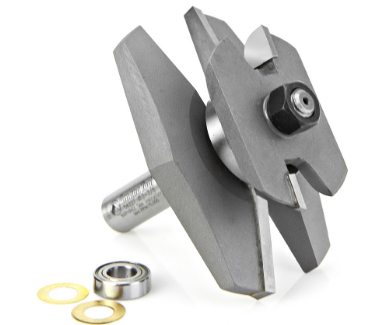

| 54227 |
0
|
Amana Tool | 3 3/8 in | 1 1/16 in | 47763, Amana Tool 5/16 ID x 1-1/4 OD x .196 Thick Steel Ball Bearing Guide|47713, Amana Tool Metric 8mm ID x 16mm OD x 5mm Thick Steel Ball Bearing Guide | 2 1/8 in | 2 w/Bearing | Reveal A reflects the total length of cut. Therefore, you must deduct 3/8 in (usually) to allow the panel to recess into the frame. To Receive 'A1,' use bearing #47713. Bearing is included with tool. | 2 15/16 in | 5/16 in | 1 3/8 in (A)1 1/16 (A1) | 1/2 in | Traditional | 15 deg | Max 12,000 | $198.75 | Add to cart | |

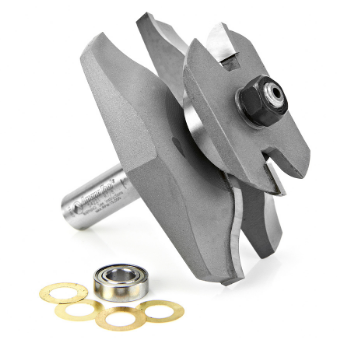

| 54221 |
1
|
Amana Tool | 3 3/8 in | 1 1/16 in | 47763, Amana Tool 5/16 ID x 1-1/4 OD x .196 Thick Steel Ball Bearing Guide|47713, Amana Tool Metric 8mm ID x 16mm OD x 5mm Thick Steel Ball Bearing Guide | 2 1/8 in | 2 w/Bearing | Reveal A reflects the total length of cut. Therefore, you must deduct 3/8 in (usually) to allow the panel to recess into the frame. To Receive 'A1,' use bearing #47713. Bearing is included with tool. | 3 1/16 in | 7/8 in | 1 3/8 in (A)1 1/16 (A1) | 1/2 in | Ogee | N/A | Max 12,000 | $198.75 | Add to cart | |

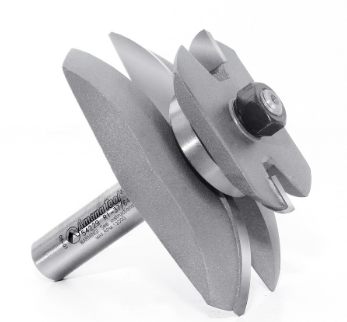

| 54229 |
2
|
Amana Tool | 3 3/8 in | 1 1/16 in | 47763, Amana Tool 5/16 ID x 1-1/4 OD x .196 Thick Steel Ball Bearing Guide|47713, Amana Tool Metric 8mm ID x 16mm OD x 5mm Thick Steel Ball Bearing Guide | 2 1/8 in | 2 w/Bearing | Reveal A reflects the total length of cut. Therefore, you must deduct 3/8 in (usually) to allow the panel to recess into the frame. To Receive 'A1,' use bearing #47713. Bearing is included with tool. | 2 15/16 in | 1 9/16 in | 1 3/8 in (A)1 1/16 (A1) | 1/2 in | Cove | N/A | Max 12,000 | $145.24 | Add to cart |
