Amana Tool Mortising Carbide-Tipped 2-FluteThank you for shopping with us! Cutting mortises for hinges and locks can be challenging: the mortise depth must be accurate for smooth operation and the edges must be sharp for a clean, professional installation. These mortise bits make hardware installation a snap. The large gullet (see images) between the two flutes quickly clears chips away and the cutter geometry creates a crisp outline for a perfect fit. Note: A proper mortising bit should have a large gullet between the two flutes (as shown in the image below). This allows greater chip clearance and removal.
|
Download as PDF| Item # | Images | Manufacturer | Diameter | Cut Height, Length, or Width | Flute | Overall Length | Shank | Price | Add To Cart | |
|---|---|---|---|---|---|---|---|---|---|---|
| 45500 |
0
|
Amana Tool | 1/2 in | 3/4 in | 2 | 2 in | 1/4 in | $19.20 | Add to cart | |
| 45502 |
1
|
Amana Tool | 5/8 in | 3/4 in | 2 | 2 in | 1/4 in | $20.25 | Add to cart | |
| 45504 |
2
|
Amana Tool | 3/4 in | 3/4 in | 2 | 2 in | 1/4 in | $23.59 | Add to cart | |

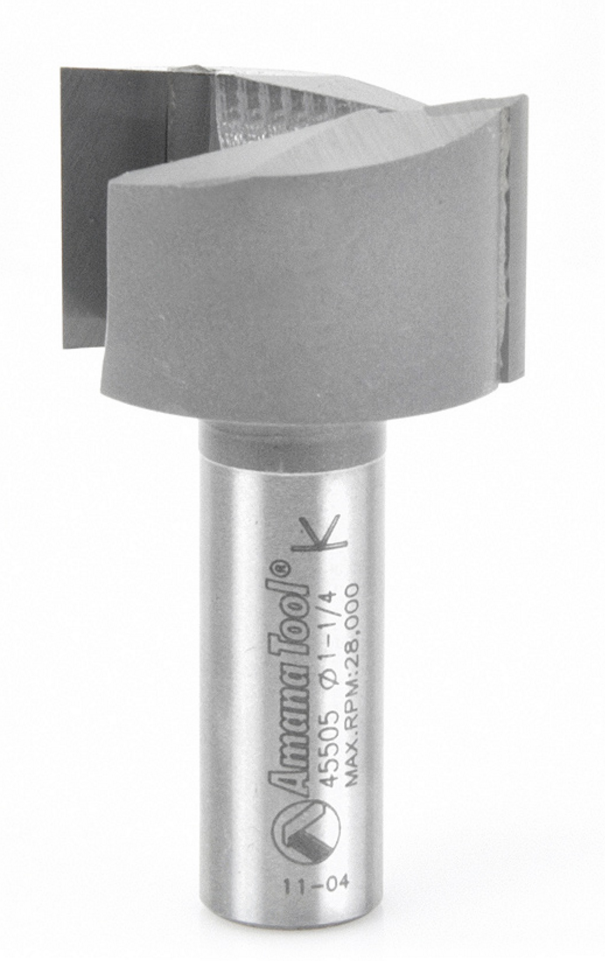

| 45505 |
3
|
Amana Tool | 1 1/4 in | 3/4 in | 2 | 2 1/8 in | 1/2 in | $38.63 | Add to cart | |
| 45181 |
4
|
Amana Tool | 3/4 in | 5/8 in | 2 | 2 1/4 in | 1/2 in | $26.93 | Add to cart | |

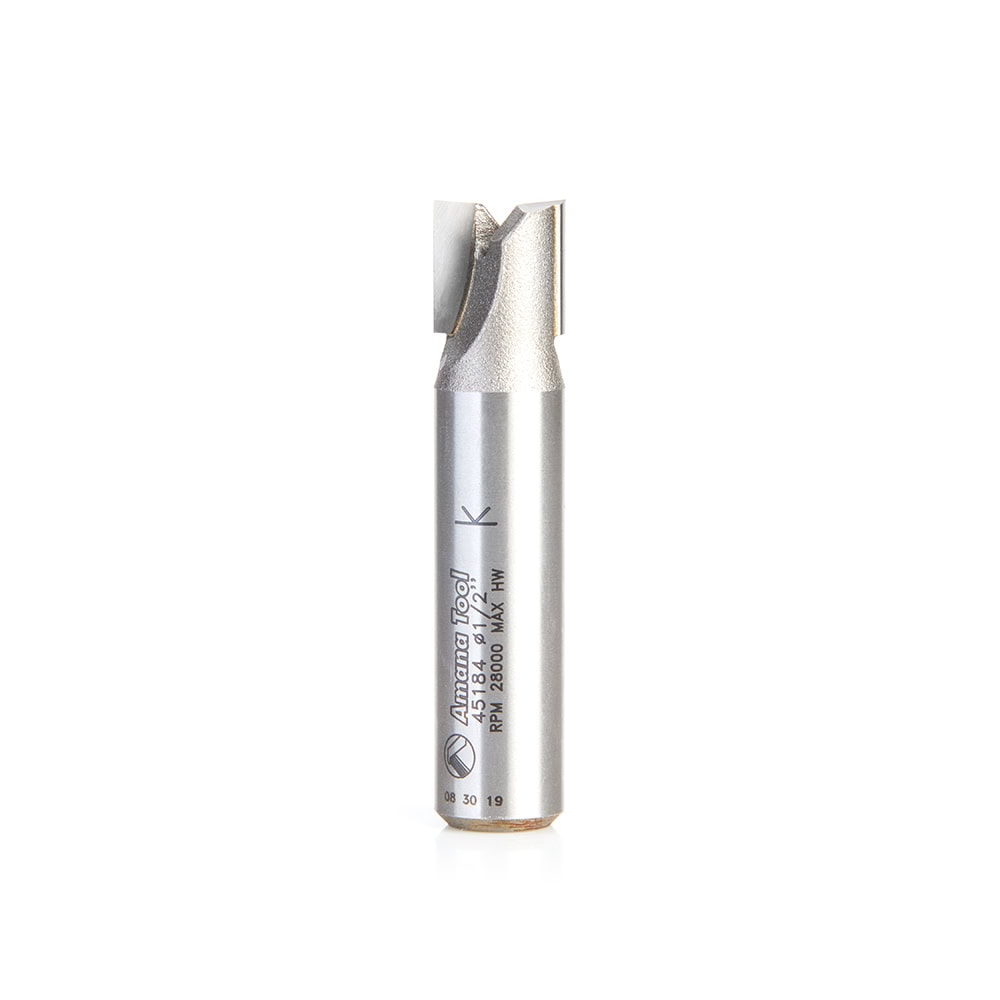

| 45184 |
5
|
Amana Tool | 1/2 in | 1/2 in | 2 | 2 3/8 in | 1/2 in | $19.20 | Add to cart | |

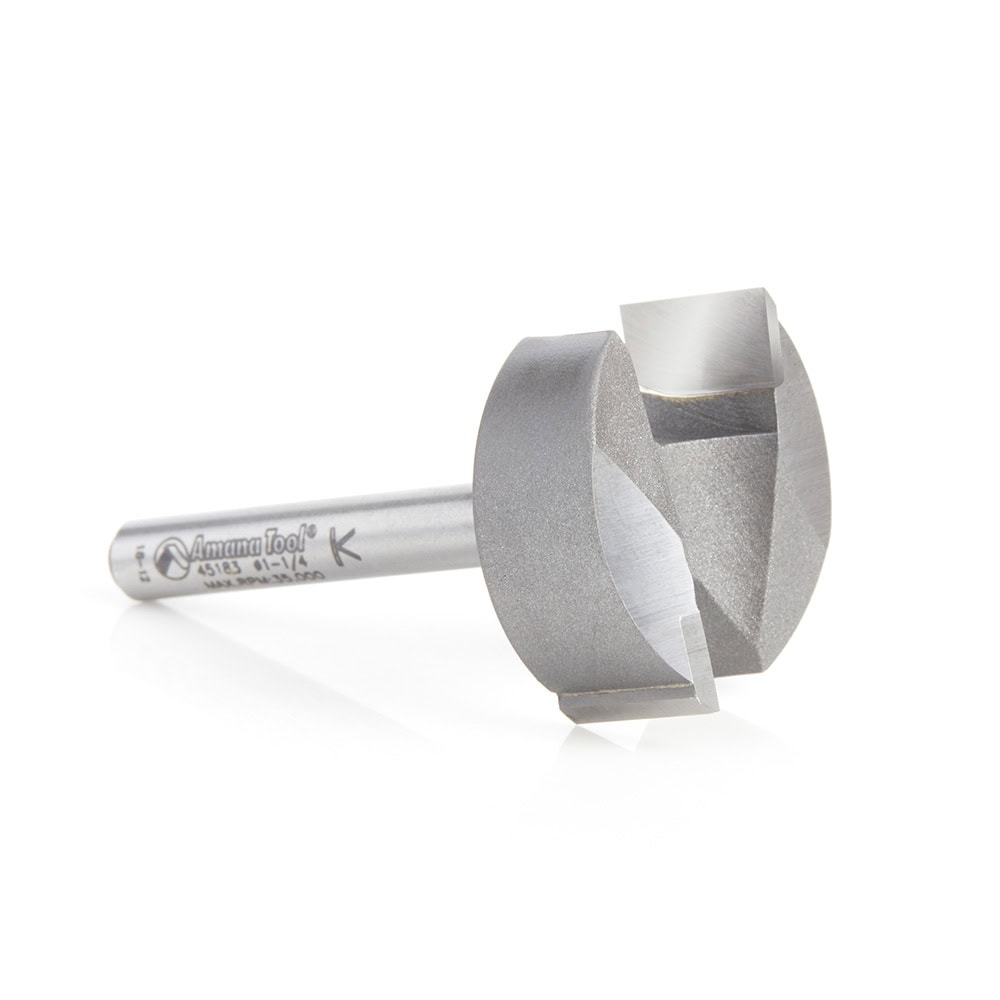

| 45183 |
6
|
Amana Tool | 1 1/4 in | 1/2 in | 2 | 2 1/4 in | 1/4 in | $35.85 | Add to cart |
