Amana Tool Beading Router Bit Carbide-Tipped 2-Flute with 3/8" Diameter Ball Bearing GuideThank you for shopping with us! Cut a quarter-round shape bound by fillets, known as a bead, in one pass. The width of one fillet is set by the pilot bearing size, while the other is controlled by the depth of cut. A beading bit can be transformed to a corner rounding bit by changing the bearing (and vise versa). Replacement bearing 47702 |
Download as PDF| Item # | Images | Manufacturer | Diameter | Cut Height, Length, or Width | Flute | Bearing(s) | Overall Length | Radius | RPM | Shank | Note | Price | Add To Cart | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

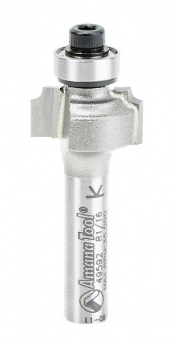

| 49592 |
0
|
Amana Tool | 5/8 in | 5/16 in | 2 w/Bearing | 47702 | 1 3/4 in | 1/16 in | -- | 1/4 in | -- | $25.09 | Add to cart | |
| 49596 |
1
|
Amana Tool | 3/4 in | 3/8 in | 2 w/Bearing | 47702 | 2 in | 1/8 in | -- | 1/4 in | -- | $26.29 | Add to cart | |
| 49598 |
2
|
Amana Tool | 3/4 in | 3/8 in | 2 w/Bearing | 47702 | 2 5/16 in | 1/8 in | -- | 1/2 in | -- | $26.29 | Add to cart | |
| 49602 |
3
|
Amana Tool | 7/8 in | 1/2 in | 2 w/Bearing | 47702 | 2 7/16 in | 3/16 in | -- | 1/2 in | -- | $27.86 | Add to cart | |
| 49604 |
4
|
Amana Tool | 1 in | 1/2 in | 2 w/Bearing | 47702 | 2 in | 1/4 in | -- | 1/4 in | -- | $27.86 | Add to cart | |
| 49606 |
5
|
Amana Tool | 1 in | 1/2 in | 2 w/Bearing | 47702 | 2 7/16 in | 1/4 in | -- | 1/2 in | -- | $27.86 | Add to cart | |

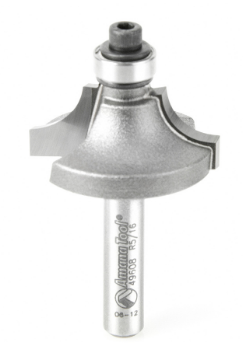

| 49608 |
6
|
Amana Tool | 1 1/8 in | 1/2 in | 2 w/Bearing | 47702 | 2 1/16 in | 5/16 in | -- | 1/4 in | -- | $27.86 | Add to cart | |
| 49614 |
7
|
Amana Tool | 1 1/4 in | 5/8 in | 2 w/Bearing | 47702 | 2 9/16 in | 3/8 in | -- | 1/2 in | -- | $27.86 | Add to cart | |
| 49616 |
8
|
Amana Tool | 1 1/2 in | 3/4 in | 2 w/Bearing | 47702 | 2 1/4 in | 1/2 in | -- | 1/4 in | -- | $36.83 | Add to cart | |

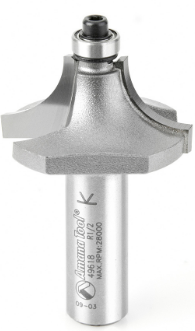

| 49618 |
9
|
Amana Tool | 1 1/2 in | 3/4 in | 2 w/Bearing | 47702 | 2 5/8 in | 1/2 in | -- | 1/2 in | -- | $36.83 | Add to cart | |

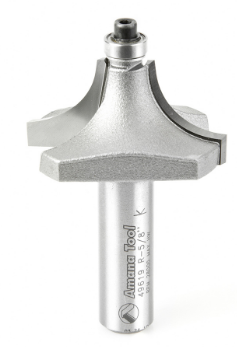

| 49619 |
10
|
Amana Tool | 1 3/4 in | 7/8 in | 2 w/Bearing | 47702 | 2 3/4 in | 5/8 in | Warning: Maximum RPM = 28,000 | 1/2 in | -- | $55.46 | Add to cart | |
| 49622 |
11
|
Amana Tool | 2 1/2 in | 1 1/4 in | 2 w/Bearing | 47702 | 3 3/16 in | 1 in | -- | 1/2 in | Use in a table-mounted router; not for use in a handheld router! Not guaranteed due to extreme diameter & radius. | $119.59 | Add to cart | |

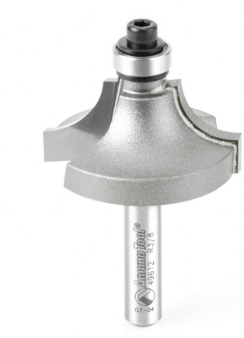

| 49612 |
12
|
Amana Tool | 1 1/4 in | 5/8 in | 2 w/Bearing | 47702 | 2 3/16 in | 3/8 in | -- | 1/4 in | -- | $31.39 | Add to cart | |
| 49600 |
13
|
Amana Tool | 7/8 in | 1/2 in | 2 w/Bearing | 47702 | 2 in | 3/16 in | -- | 1/4 in | -- | $27.86 | Add to cart | |

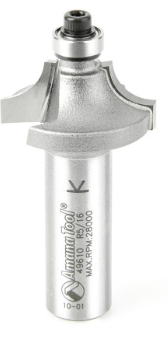

| 49610 |
14
|
Amana Tool | 1 1/8 in | 1/2 in | 2 w/Bearing | 47702 | 2 7/16 in | 5/16 in | -- | 1/2 in | -- | $27.98 | Add to cart | |
| 49620 |
15
|
Amana Tool | 2 in | 1 in | 2 w/Bearing | 47702 | 2 7/8 in | 3/4 in | Warning: Maximum RPM = 22,000 | 1/2 in | -- | $56.33 | Add to cart |
