Amana Tool Chamfer Carbide-Tipped Router Bits 2-Flute w/Ball Bearing GuideThank you for shopping with us! Chamfer or bevel edges for decorative effect or to form edge miter joints. Produce crisp, uniform edges at accurate angles to make 4-, 6-, 12-, or 16-sided boxes. For best results, use in a router table. Also refer to: Amana Tool CNC Insert Carbide Adjustable Chamfers RC-2370 & RC-2375
|
Download as PDF| Item # | Images | Manufacturer | Diameter | Cut Height, Length, or Width | Flute | Bearing(s) | Note | Overall Length | RPM | Shank | Angle | Price | Add To Cart | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 49402 |
0
|
Amana Tool | 1 1/4 in | 1/2 in | 2 w/Bearing | 47704 | -- | 2 3/8 in | Max RPM 28,000 | 1/2 in | 45 deg | $37.54 | Add to cart | |
| 49404 |
1
|
Amana Tool | 1 31/32 in | 3/4 in | 2 w/Bearing | 47706 | Will completely chamfer 3/4 in material. Use in a table-mounted router; not for use in a handheld router! | 2 23/32 in | Max RPM 28,000 | 1/2 in | 45 deg | $93.30 | Add to cart | |
| 49406 |
2
|
Amana Tool | 2 3/8 in | 1 in | 2 w/Bearing | 47706 | Will completely chamfer 1 in material | 2 7/8 in | Warning: Max RPM 18,000 | 1/2 in | 45 deg | $111.94 | Add to cart | |
| 49405 |
3
|
Amana Tool | 3 in | 1 1/8 in | 2 w/Bearing | 47710 | -- | 3 in | Warning: Max RPM 18,000 | 1/2 in | 45 deg | $127.88 | Add to cart | |
| 49407 |
4
|
Amana Tool | 7/8 in | 1 in | 2 w/Bearing | 47706 | -- | 2 7/8 in | Max RPM 28,000 | 1/2 in | 11 1/4 deg | $41.60 | Add to cart | |
| 49408 |
5
|
Amana Tool | 7/8 in | 3/4 in | 2 w/Bearing | 47706 | -- | 2 1/4 in | Max RPM 28,000 | 1/4 in | 15 deg | $37.31 | Add to cart | |
| 49412 |
6
|
Amana Tool | 1 3/8 in | 13/16 in | 2 w/Bearing | 47706 | -- | 2 1/4 in | Max RPM 35,000 | 1/4 in | 30 deg | $39.36 | Add to cart | |
| 49414 |
7
|
Amana Tool | 1 3/8 in | 13/16 in | 2 w/Bearing | 47706 | -- | 2 3/4 in | Max RPM 35,000 | 1/2 in | 30 deg | $39.86 | Add to cart | |
| 49416 |
8
|
Amana Tool | 2 1/2 in | 11/16 in | 2 w/Bearing | 47706 | Use in a table-mounted router; not for use in a handheld router! | 2 3/4 in | Warning: Max RPM 16,000 | 1/2 in | 60 deg | $121.31 | Add to cart | |
| 49400 |
9
|
Amana Tool | 1 1/4 in | 1/2 in | 2 w/Bearing | 47704 | -- | 2 in | Max RPM 35,000 | 1/4 in | 45 deg | $36.45 | Add to cart | |
| 49410 |
10
|
Amana Tool | 1 1/4 in | 15/16 in | 2 w/Bearing | 47706 | -- | 2 7/8 in | Max RPM 28,000 | 1/2 in | $42.30 | Add to cart | ||
| 49420 |
11
|
Amana Tool | 1 1/2 in | 5/8 in | 2 w/Bearing | 47706 | -- | 2 5/8 in | Max RPM 28,000 | 1/2 in | $53.25 | Add to cart | ||
| 49401 |
12
|
Amana Tool | 1 in | 5/16 in | 2 | 47704 | -- | 2 in | Max RPM 28,000 | 1/4 in | 45 deg | $28.69 | Add to cart | |
| 49402 |
13
|
Amana Tool | 1 1/4 in | 1/2 in | 2 | 47704 | -- | 2 3/8 in | Max RPM 28,000 | 1/2 in | 45 deg | $37.54 | Add to cart | |

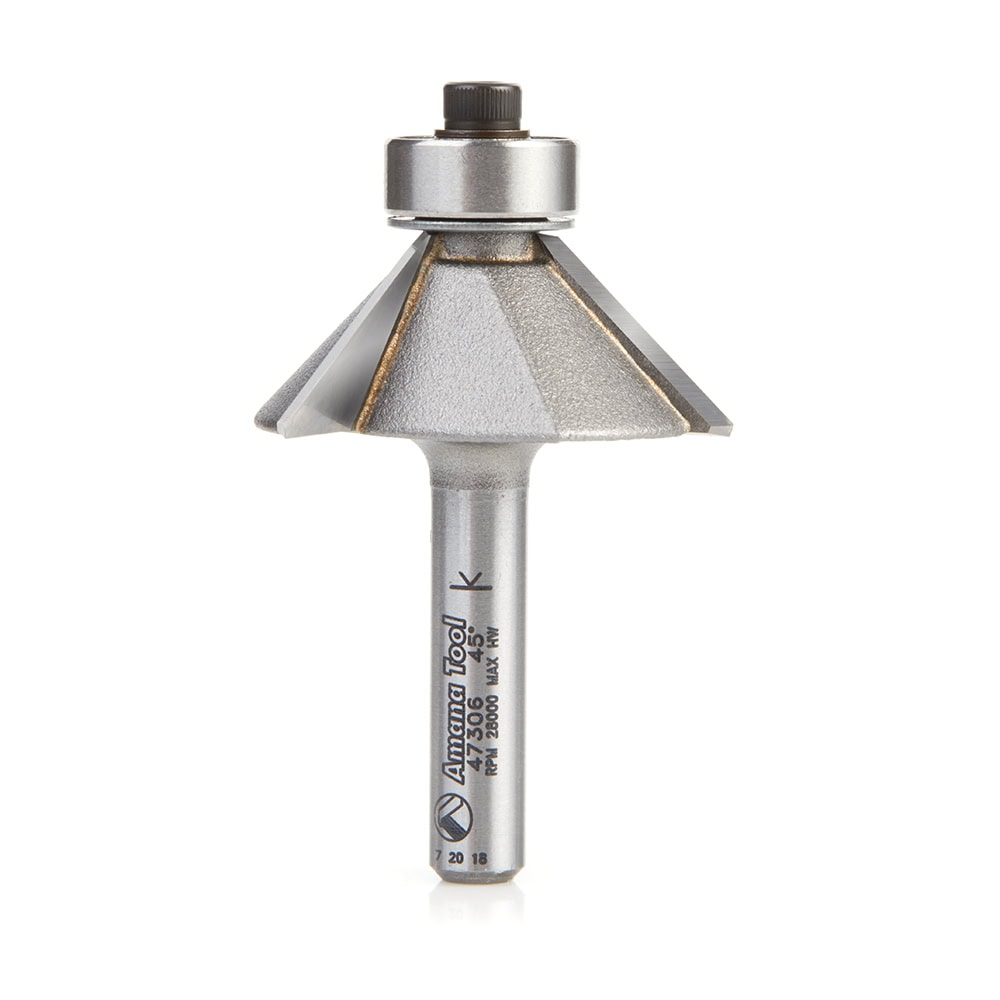

| 47306 |
14
|
Amana Tool | 1 19/64 in | 7/16 in | 3 | 47706 | -- | 2 in | Max RPM 28,000 | 1/4 in | 45 deg | $41.10 | Add to cart | |

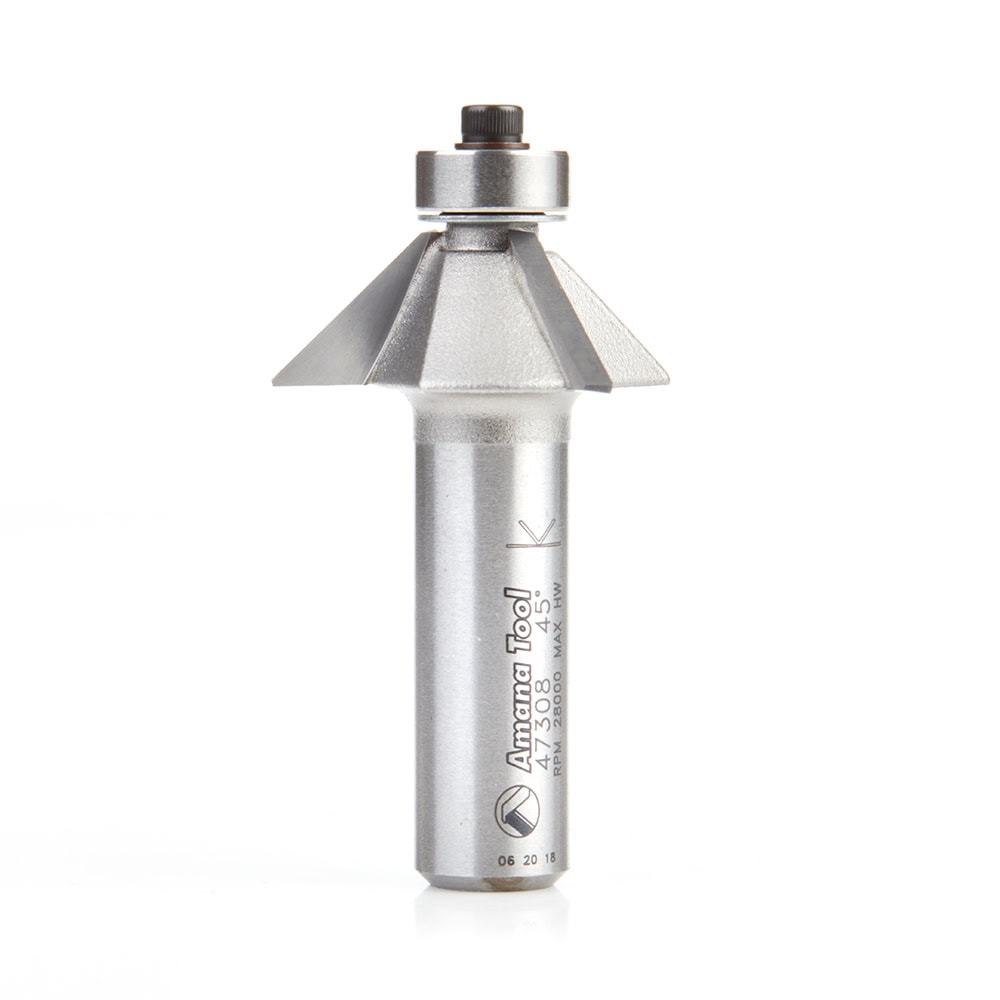

| 47308 |
15
|
Amana Tool | 1 19/64 in | 7/16 in | 3 | 47706 | -- | 2 3/8 in | Max RPM 28,000 | 1/2 in | 45 deg | $42.00 | Add to cart | |
| 47309 |
16
|
Amana Tool | 1 3/4 in | 3/4 in | 4 | 47712 | -- | 2 13/16 in | Max RPM 28,000 | 1/2 in | 45 deg | $91.43 | Add to cart |
