Amana Tool Bullnose Router Bits Carbide-Tipped 2-Flute with Ball Bearing GuideThank you for shopping with us! Shape the full edge of a workpiece with a bullnose radius bit. Ideal for shaping stair treads, window sills, table and counter edges, shelves, and to make moldings. The “nose diameter” (material thickness) is the thickness of stock that can be nosed, i.e., given a full 180° roundover. Flats at top and bottom of the cutting edges create fillets on stock thicker than the nose diameter. Must be used with an edge guide on handheld routers or the fence on a router table. |
Download as PDF| Item # | Images | Manufacturer | Diameter | Cut Height, Length, or Width | Bearing(s) | Flute | Material Thickness | Note | Overall Length | Radius | Shank | RPM | Price | Add To Cart | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 51565 |
0
|
Amana Tool | 5/8 in | 1/2 in | 47706, Amana Tool 3/16 ID x 1/2 OD x .195 Thick Steel Ball Bearing Guide | 2 w/Bearing | 1/8 in | Material Thickness denotes thickness of material on which a full 180 deg roundover can be accomplished | 2 1/8 in | 1/16 in | 1/4 in | -- | $46.65 | Add to cart | |

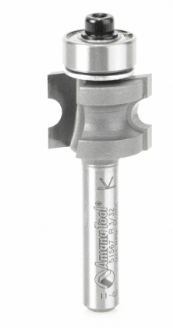

| 51567 |
1
|
Amana Tool | 11/16 in | 1/2 in | 47706, Amana Tool 3/16 ID x 1/2 OD x .195 Thick Steel Ball Bearing Guide | 2 w/Bearing | 3/16 in | Material Thickness denotes thickness of material on which a full 180 deg roundover can be accomplished | 2 1/8 in | 3/32 in | 1/4 in | -- | $48.56 | Add to cart | |
| 51568 |
2
|
Amana Tool | 3/4 in | 3/4 in | 47706, Amana Tool 3/16 ID x 1/2 OD x .195 Thick Steel Ball Bearing Guide | 2 w/Bearing | 1/4 in | Material Thickness denotes thickness of material on which a full 180 deg roundover can be accomplished | 2 3/8 in | 1/8 in | 1/4 in | -- | $64.43 | Add to cart | |
| 51569 |
3
|
Amana Tool | 7/8 in | 3/4 in | 47706, Amana Tool 3/16 ID x 1/2 OD x .195 Thick Steel Ball Bearing Guide | 2 w/Bearing | 3/8 in | Material Thickness denotes thickness of material on which a full 180 deg roundover can be accomplished | 2 3/4 in | 13/64 in | 1/2 in | -- | $84.00 | Add to cart | |
| 51570 |
4
|
Amana Tool | 1 1/16 in | 1 in | 47706, Amana Tool 3/16 ID x 1/2 OD x .195 Thick Steel Ball Bearing Guide | 2 w/Bearing | 35/64 in | Material Thickness denotes thickness of material on which a full 180 deg roundover can be accomplished | 2 7/8 in | 17/64 in | 1/2 in | -- | $84.00 | Add to cart | |
| 51572 |
5
|
Amana Tool | 1 3/8 in | 1 5/16 in | 47716, Amana Tool Metric 5mm ID x 16mm OD x 5mm Thick Steel Ball Bearing Guide | 2 w/Bearing | 3/4 in | Material Thickness denotes thickness of material on which a full 180 deg roundover can be accomplished. Use in a table-mounted router; not for use in a handheld router! | 3 1/4 in | 3/8 in | 1/2 in | Warning: Maximum RPM: 20,000 | $93.30 | Add to cart | |
| 51574 |
6
|
Amana Tool | 1 13/16 in | 1 19/32 in | 47714, Amana Tool 1/4 ID x 3/4 OD x .280 Thick Steel Ball Bearing Guide | 2 w/Bearing | 1 in | Material Thickness denotes thickness of material on which a full 180 deg roundover can be accomplished. Use in a table-mounted router; not for use in a handheld router! | 3 1/2 in | 1/2 in | 1/2 in | Warning: Maximum RPM: 18,000 | $107.33 | Add to cart |
