Amana Tool Bullnose Carbide-Tipped Router BitsThank you for shopping with us! Shape the full edge of a workpiece with a bullnose radius bit. Ideal for shaping stair treads, window sills, table and counter edges, shelves, and to make moldings. The “nose diameter” (material thickness) is the thickness of stock that can be nosed, i.e., given a full 180-degree roundover. Flats at top and bottom of the cutting edges create fillets on stock thicker than the nose diameter. Must be used with an edge guide on handheld routers or the fence on a router table. All are 2 flute, with the exception of 51566, which is 3 flute. |
Download as PDF| Item # | Images | Manufacturer | Diameter | Cut Height, Length, or Width | Flute | Material Thickness | Note | Overall Length | Radius | Shank | Price | Add To Cart | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 51540 |
0
|
Amana Tool | 17/32 in | 1/2 in | 2 | 5/32 in | Material Thickness denotes thickness of material on which a full 180 deg roundover can be accomplished | 1 3/4 in | 5/64 in | 1/4 in | $27.83 | Add to cart | |
| 51541 |
1
|
Amana Tool | 21/32 in | 1/2 in | 2 | 3/16 in | Material Thickness denotes thickness of material on which a full 180 deg roundover can be accomplished | 1 5/8 in | 3/32 in | 1/4 in | $26.93 | Add to cart | |
| 51542 |
2
|
Amana Tool | 19/32 in | 1/2 in | 2 | 7/32 in | Material Thickness denotes thickness of material on which a full 180 deg roundover can be accomplished | 1 3/4 in | 7/64 in | 1/4 in | $33.19 | Add to cart | |
| 51543 |
3
|
Amana Tool | 23/32 in | 9/16 in | 2 | 1/4 in | Material Thickness denotes thickness of material on which a full 180 deg roundover can be accomplished | 1 11/16 in | 1/8 in | 1/4 in | $31.01 | Add to cart | |
| 51544 |
4
|
Amana Tool | 21/32 in | 3/4 in | 2 | 9/32 in | Material Thickness denotes thickness of material on which a full 180 deg roundover can be accomplished | 1 7/8 in | 9/64 in | 1/4 in | $35.85 | Add to cart | |
| 51545 |
5
|
Amana Tool | 7/8 in | 7/8 in | 2 | 3/8 in | Material Thickness denotes thickness of material on which a full 180 deg roundover can be accomplished | 2 in | 3/16 in | 1/4 in | $35.85 | Add to cart | |
| 51547 |
6
|
Amana Tool | 1 in | 1 in | 2 | 1/2 in | Material Thickness denotes thickness of material on which a full 180 deg roundover can be accomplished | 2 1/8 in | 1/4 in | 1/4 in | $42.19 | Add to cart | |
| 51550 |
7
|
Amana Tool | 17/32 in | 1/2 in | 2 | 5/32 in | Material Thickness denotes thickness of material on which a full 180 deg roundover can be accomplished | 2 in | 5/64 in | 1/2 in | $31.39 | Add to cart | |

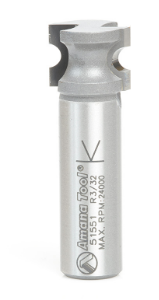

| 51551 |
8
|
Amana Tool | 21/31 in | 1/2 in | 2 | 3/16 in | Material Thickness denotes thickness of material on which a full 180 deg roundover can be accomplished | 2 in | 3/32 in | 1/2 in | $27.83 | Add to cart | |
| 51552 |
9
|
Amana Tool | 19/32 in | 1/2 in | 2 | 7/32 in | Material Thickness denotes thickness of material on which a full 180 deg roundover can be accomplished | 2 in | 7/64 in | 1/2 in | $31.39 | Add to cart | |
| 51554 |
10
|
Amana Tool | 21/32 in | 3/4 in | 2 | 9/32 in | Material Thickness denotes thickness of material on which a full 180 deg roundover can be accomplished | 2 1/4 in | 9/64 in | 1/2 in | $40.39 | Add to cart | |
| 51553 |
11
|
Amana Tool | 23/32 in | 9/16 in | 2 | 1/4 in | Material Thickness denotes thickness of material on which a full 180 deg roundover can be accomplished | 2 1/16 in | 1/8 in | 1/2 in | $33.19 | Add to cart | |
| 51555 |
12
|
Amana Tool | 7/8 in | 7/8 in | 2 | 3/8 in | Material Thickness denotes thickness of material on which a full 180 deg roundover can be accomplished | 2 3/8 in | 3/16 in | 1/2 in | $40.39 | Add to cart | |
| 51556 |
13
|
Amana Tool | 7/8 in | 3/4 in | 2 | 27/64 in | Material Thickness denotes thickness of material on which a full 180 deg roundover can be accomplished | 2 1/4 in | 13/64 in | 1/2 in | $43.05 | Add to cart | |
| 51557 |
14
|
Amana Tool | 1 in | 1 in | 2 | 1/2 in | Material Thickness denotes thickness of material on which a full 180 deg roundover can be accomplished | 2 1/2 in | 1/4 in | 1/2 in | $50.21 | Add to cart | |
| 51558 |
15
|
Amana Tool | 1 1/32 in | 1 in | 2 | 35/64 in | Material Thickness denotes thickness of material on which a full 180 deg roundover can be accomplished | 2 1/2 in | 17/64 in | 1/2 in | $62.81 | Add to cart | |
| 51559 |
16
|
Amana Tool | 1 1/8 in | 1 in | 2 | 5/8 in | Material Thickness denotes thickness of material on which a full 180 deg roundover can be accomplished | 2 1/2 in | 5/16 in | 1/2 in | $71.74 | Add to cart | |
| 51560 |
17
|
Amana Tool | 1 1/4 in | 1 5/16 in | 2 | 3/4 in | Material Thickness denotes thickness of material on which a full 180 deg roundover can be accomplished | 2 3/4 in | 3/8 in | 1/2 in | $71.74 | Add to cart | |

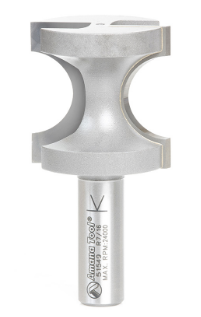

| 51549 |
18
|
Amana Tool | 1 1/2 in | 1 1/2 in | 2 | 7/8 in | Material Thickness denotes thickness of material on which a full 180 deg roundover can be accomplished | 3 in | 7/16 in | 1/2 in | $71.74 | Add to cart | |
| 51562 |
19
|
Amana Tool | 1 11/16 in | 1 9/16 in | 2 | 1 in | Material Thickness denotes thickness of material on which a full 180 deg roundover can be accomplished | 3 1/16 in | 1/2 in | 1/2 in | $80.74 | Add to cart | |
| 51563 |
20
|
Amana Tool | 1 13/16 in | 1 1/2 in | 2 | 1 1/8 in | Material Thickness denotes thickness of material on which a full 180 deg roundover can be accomplished | 3 in | 9/16 in | 1/2 in | $76.28 | Add to cart | |
| 51564 |
21
|
Amana Tool | 2 in | 2 in | 2 | 1 1/4 in | Material Thickness denotes thickness of material on which a full 180 deg roundover can be accomplished | 3 1/2 in | 5/8 in | 1/2 in | $89.70 | Add to cart | |
| 51566 |
22
|
Amana Tool | 2 3/8 in | 2 in | 3 | 1 1/2 in | Material Thickness denotes thickness of material on which a full 180 deg roundover can be accomplished | 3 1/2 in | 3/4 in | 1/2 in | $161.48 | Add to cart |
