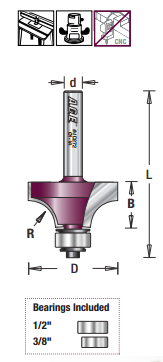

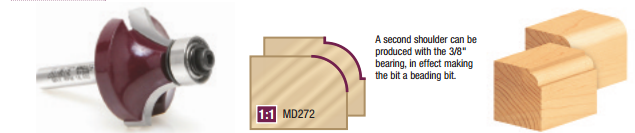

Amana Pro-Series Corner Round & Beading Router BitsThank you for shopping with us! The basic edge-forming bit, the corner-rounding bit, rounds an edge to a given radius. The tool is shouldered to cut a fillet. Can be used to ease edges, as a simple profile, or as a part of a complex one. 2-Flute
|
Download as PDF| Item # | Images | Manufacturer | Diameter | Bearing(s) | Cut Height, Length, or Width | Overall Length | Radius | Shank | Price | Add To Cart | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MD260 |
0
|
Amana Tool | 5/8 in | 47706, Amana Tool 3/16 ID x 1/2 OD x .195 Thick Steel Ball Bearing Guide|47702, Amana Tool 3/16 ID x 3/8 OD x .124 Thick Steel Ball Bearing Guide | 15/64 in | 1 7/8 in | 1/16 in | 1/4 in | $24.94 | Add to cart | |
| MD262 |
1
|
Amana Tool | 3/4 in | 47706, Amana Tool 3/16 ID x 1/2 OD x .195 Thick Steel Ball Bearing Guide|47702, Amana Tool 3/16 ID x 3/8 OD x .124 Thick Steel Ball Bearing Guide | 3/8 in | 2 in | 1/8 in | 1/4 in | $23.89 | Add to cart | |
| MD264 |
2
|
Amana Tool | 7/8 in | 47706, Amana Tool 3/16 ID x 1/2 OD x .195 Thick Steel Ball Bearing Guide|47702, Amana Tool 3/16 ID x 3/8 OD x .124 Thick Steel Ball Bearing Guide | 1/2 in | 2 in | 3/16 in | 1/4 in | $26.40 | Add to cart | |
| MD266 |
3
|
Amana Tool | 1 in | 47706, Amana Tool 3/16 ID x 1/2 OD x .195 Thick Steel Ball Bearing Guide|47702, Amana Tool 3/16 ID x 3/8 OD x .124 Thick Steel Ball Bearing Guide | 1/2 in | 2 1/8 in | 1/4 in | 1/4 in | $24.23 | Add to cart | |
| MD268 |
4
|
Amana Tool | 1 in | 47706, Amana Tool 3/16 ID x 1/2 OD x .195 Thick Steel Ball Bearing Guide|47702, Amana Tool 3/16 ID x 3/8 OD x .124 Thick Steel Ball Bearing Guide | 1/2 in | 2 7/16 in | 1/4 in | 1/2 in | $24.68 | Add to cart | |
| MD270 |
5
|
Amana Tool | 1 1/8 in | 47706, Amana Tool 3/16 ID x 1/2 OD x .195 Thick Steel Ball Bearing Guide|47702, Amana Tool 3/16 ID x 3/8 OD x .124 Thick Steel Ball Bearing Guide | 1/2 in | 2 3/16 in | 5/16 in | 1/4 in | $25.95 | Add to cart | |
| MD272 |
6
|
Amana Tool | 1 1/4 in | 47706, Amana Tool 3/16 ID x 1/2 OD x .195 Thick Steel Ball Bearing Guide|47702, Amana Tool 3/16 ID x 3/8 OD x .124 Thick Steel Ball Bearing Guide | 5/8 in | 2 5/16 in | 3/8 in | 1/4 in | $25.35 | Add to cart | |
| MD274 |
7
|
Amana Tool | 1 1/4 in | 47706, Amana Tool 3/16 ID x 1/2 OD x .195 Thick Steel Ball Bearing Guide|47702, Amana Tool 3/16 ID x 3/8 OD x .124 Thick Steel Ball Bearing Guide | 5/8 in | 2 9/16 in | 3/8 in | 1/2 in | $26.25 | Add to cart | |
| MD276 |
8
|
Amana Tool | 1 1/2 in | 47706, Amana Tool 3/16 ID x 1/2 OD x .195 Thick Steel Ball Bearing Guide|47702, Amana Tool 3/16 ID x 3/8 OD x .124 Thick Steel Ball Bearing Guide | 3/4 in | 2 23/64 in | 1/2 in | 1/4 in | $27.94 | Add to cart | |
| MD278 |
9
|
Amana Tool | 1 1/2 in | 47706, Amana Tool 3/16 ID x 1/2 OD x .195 Thick Steel Ball Bearing Guide|47702, Amana Tool 3/16 ID x 3/8 OD x .124 Thick Steel Ball Bearing Guide | 3/4 in | 2 5/8 in | 1/2 in | 1/2 in | $28.76 | Add to cart | |
| MD280 |
10
|
Amana Tool | 2 in | 47706, Amana Tool 3/16 ID x 1/2 OD x .195 Thick Steel Ball Bearing Guide|47702, Amana Tool 3/16 ID x 3/8 OD x .124 Thick Steel Ball Bearing Guide | 1 in | 2 29/32 in | 3/4 in | 1/2 in | $45.53 | Add to cart | |
| MD282 |
11
|
Amana Tool | 2 1/2 in | 47706, Amana Tool 3/16 ID x 1/2 OD x .195 Thick Steel Ball Bearing Guide|47702, Amana Tool 3/16 ID x 3/8 OD x .124 Thick Steel Ball Bearing Guide | 1 1/4 in | 3 3/16 in | 1 in | 1/2 in | $92.63 | Add to cart |
