Techniks CAT40, 50 Precision Retention KnobsThank you for shopping with us! • All mating surfaces precision ground Please make sure that the Retention Knob you order is the correct one for your machine. Using the wrong Retention Knob can cause damage to your machine spindle, the toolholder, and may create a safety hazard.  |

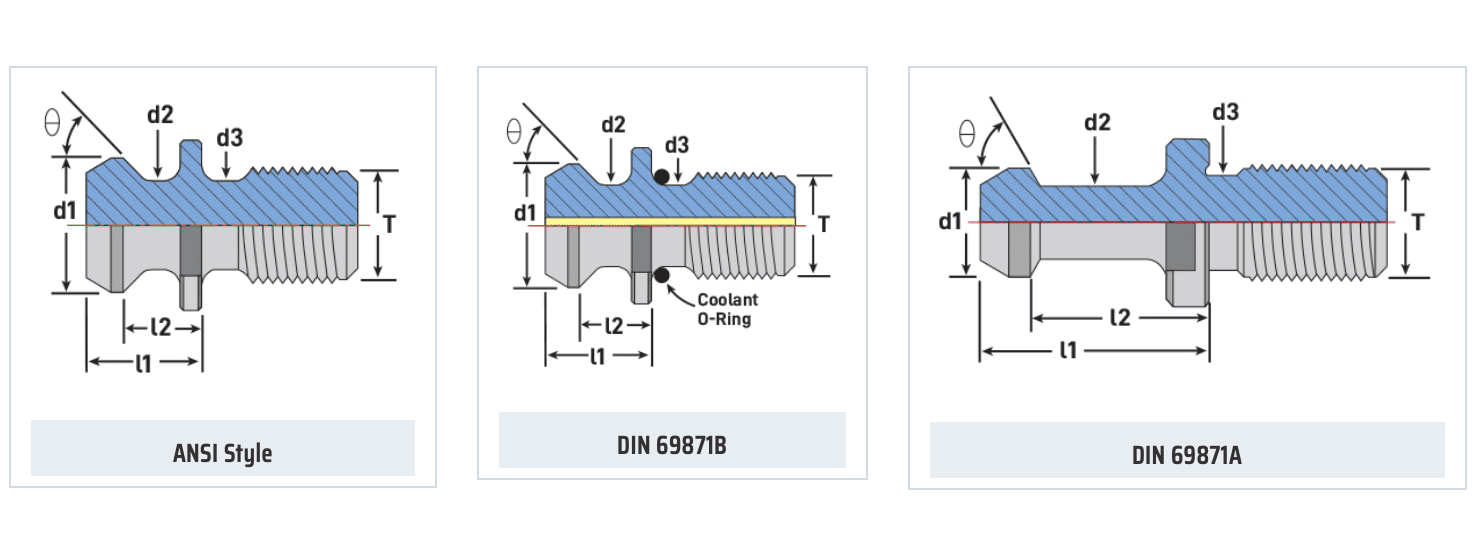

Download as PDF| Item # | Images | Manufacturer | Degree | Diameter (D1) | Diameter (D2) | Thread Size/Length | Length | Type | Price | Add To Cart | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 21006-15 |
0
|
Techniks | 15 Deg | .750 in | .550 in | 5/8 - 11 in | l1 - 1.024 in / l2 - .787 in | CAT40-DIN | $26.00 | Add to cart | |
| 21007-15 |
1
|
Techniks | 15 Deg | .75 in | .550 in | 5/8 - 11 in | l1 1.028 in / l2 .792 in | CAT40-DIN | $26.00 | Add to cart | |
| 21003 |
2
|
Techniks | 45 Deg | .740 in | .490 in | 5/8 - 11 in | l1 .640 in / l2 .440 in | CAT40-ANSI | $26.00 | Add to cart | |
| 21003-45 |
3
|
Techniks | 45 Deg | .590 in | .394 in | 5/8 - 11 in | l1 1.266 in / l2 .990 in | CAT40-MAS-I | $26.00 | Add to cart | |
| 21003-60 |
4
|
Techniks | 60 Deg | .590 in | .394 in | 5/8 - 11 in | l1 1.266 in / l2 .990 in | CAT40-MAS-II | $26.00 | Add to cart | |
| 21003-90 |
5
|
Techniks | 90 Deg | .590 in | .394 in | 5/8 - 11 in | l1 1.266 in / l2 .990 in | CAT40-MAS-III | $26.00 | Add to cart | |
| 21005-45 |
6
|
Techniks | 45 Deg | .906 in | .669 in | 1 - 8 in | l1 1.772 in / l2 1.378 in | CAT50-MAS-I | $32.00 | Add to cart | |
| 21005-60 |
7
|
Techniks | 60 Deg | .906 in | .669 in | 1 - 8 in | l1 1.772 in / l2 1.378 in | CAT50-MAS-II | $32.00 | Add to cart | |
| 21005-90 |
8
|
Techniks | 90 Deg | .906 in | .669 in | 1 - 8 in | l1 1.772 in / l2 1.378 in | CAT50-MAS-III | $32.00 | Add to cart | |
| 21008-15 |
9
|
Techniks | 15 Deg | 1.101 in | .825 in | 1 - 8 in | l1 1.338 in / l2 .984 in | CAT50-DIN | $51.00 | Add to cart | |
| 21005 |
10
|
Techniks | 45 Deg | 1.140 in | .820 in | 1 - 8 in | l1 .820 in / l2 1.000 in | CAT50-ANSI | $32.00 | Add to cart |
