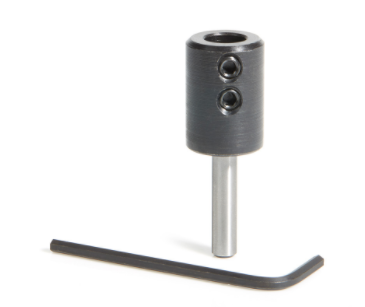

Amana Tool Dowel Drill/Boring Bit Adapter for CNC Standard Collet/Tool HolderThank you for shopping with us! Made especially to run 10mm shank dowel drills and boring bits on a CNC machine. Accommodates the flat area on the 10mm round drill bit shank, secure with the 2 set screws (M6), same method as on boring machines. Total Indicated Run-out (TIR) is 0.00118″ (0.03mm) Note: When securing drill bit into the adapter, make sure to align the flat part of the shank with both set screws. Warning: Max RPM = 10,000 |
Download as PDF| Item # | Images | Manufacturer | Diameter | Diameter (D1) | Length | Overall Length | RPM | Shank | Replacement Parts | Price | Add To Cart | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47643 |
0
|
Amana Tool | 3/4 in | 10 mm | 1 1/16 in Body Length | 2 5/32 in | Max 8,000 | 6mm | Screws (2) 67075; Wrench 5004 | $24.26 | Add to cart | |
| 47636 |
1
|
Amana Tool | 3/4 in | 10 mm | 1 1/16 in Body Length | 2 5/32 in | Max 8,000 | 1/4 in | Screws (2) 67075; Wrench 5004 | $24.26 | Add to cart | |
| 47644 |
2
|
Amana Tool | 3/4 in | 10 mm | 1 1/16 in Body Length | 2 5/32 in | Max 8,000 | 10mm | Screws (2) 67075; Wrench 5004 | $24.26 | Add to cart | |
| 47638 |
3
|
Amana Tool | 3/4 in | 10 mm | 1 1/16 in Body Length | 2 5/32 in | Max 8,000 | 1/2 in | Screws (2) 67075; Wrench 5004 | $24.26 | Add to cart |
